RP59 Installation Instructions

A superior quality EPDM rubber, self adhesive weather seal for Doors & Windows. Quick and easy to install, the RP59 is a DIY product that works well in eliminating draughts, rattles and cushioning applications.

The RP59 Window & Door Weather strip is suitable for all doors and windows.

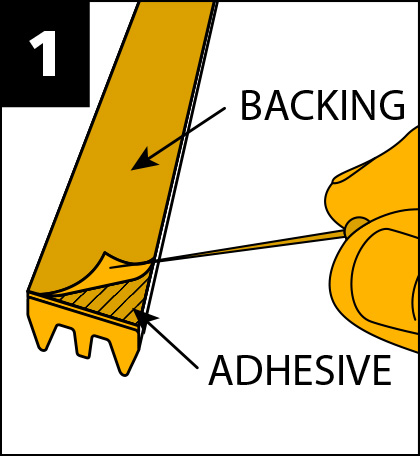

  1. All surfaces must be clean, smooth and if painted, well cured.

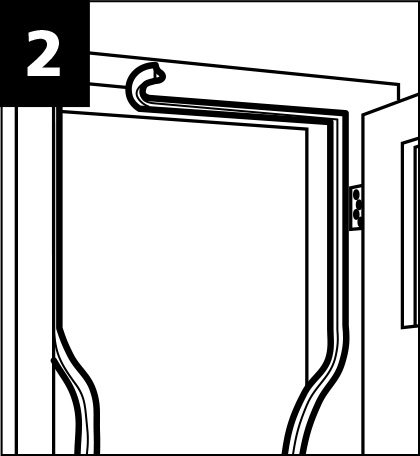

  2. Separate twin rubber weather strip to form a single strip.
    Step 2 Figure 1

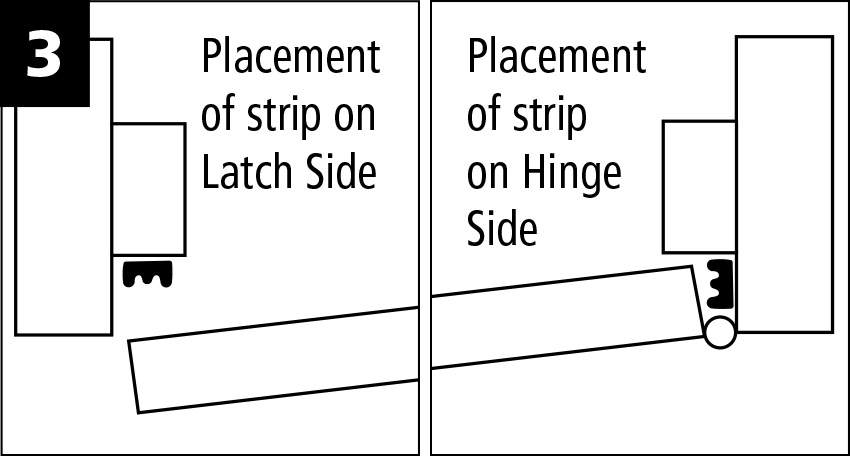

  3. Progressively remove backing paper and apply single weather strip as illustrated.

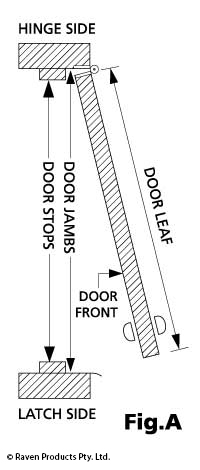

NOTE: Position of weather strip on door stops. Note that the placement on the hinged side is different to the latch side.
Figure A
