RP38 Door Bottom Seal

  • Gap Size: 3-13mm
  • Location: Door Bottom
$115.42 (inc GST)

For detailed product information, please Click Here to go to the manufacturer's website.

NOTE: This is a commercial product, we recommend installation by a second fix carpenter or joiner.

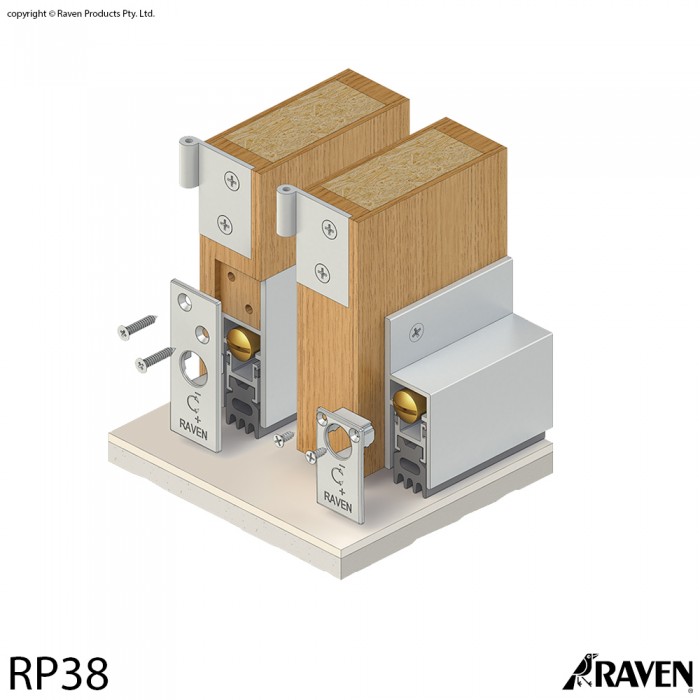

A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features an EPDM foam gasket for acoustic door applications and doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.

IMPORTANT: Seals can be cut back to the previous available size eg. 1067mm cuts back to 920mm. For seal sizes see table below.

Suits Door Types
Double Inward Opening, Double Outward Opening, Single Inward Opening, Single Outward Opening
Tools Required
See detailed fitting instructions supplied with goods
Product Number Barcode Length Colour
A38B18 9310459019746 450mm Anodised (Bronze)
A38C18 9310459019821 450mm Anodised (Clear)
A38B36 9310459019760 920mm Anodised (Bronze)
A38C36 9310459019845 920mm Anodised (Clear)
A38B42 9310459019777 1070mm Anodised (Bronze)
A38C42 9310459019852 1070mm Anodised (Clear)
A38B48 9310459019784 1220mm Anodised (Bronze)
A38C48 9310459019869 1220mm Anodised (Clear)
A38B60 9310459019791 1500mm Anodised (Bronze)
A38C60 9310459019876 1500mm Anodised (Clear)
A38B24 9310459019753 610mm Anodised (Bronze)
A38C24 9310459019838 610mm Anodised (Clear)
