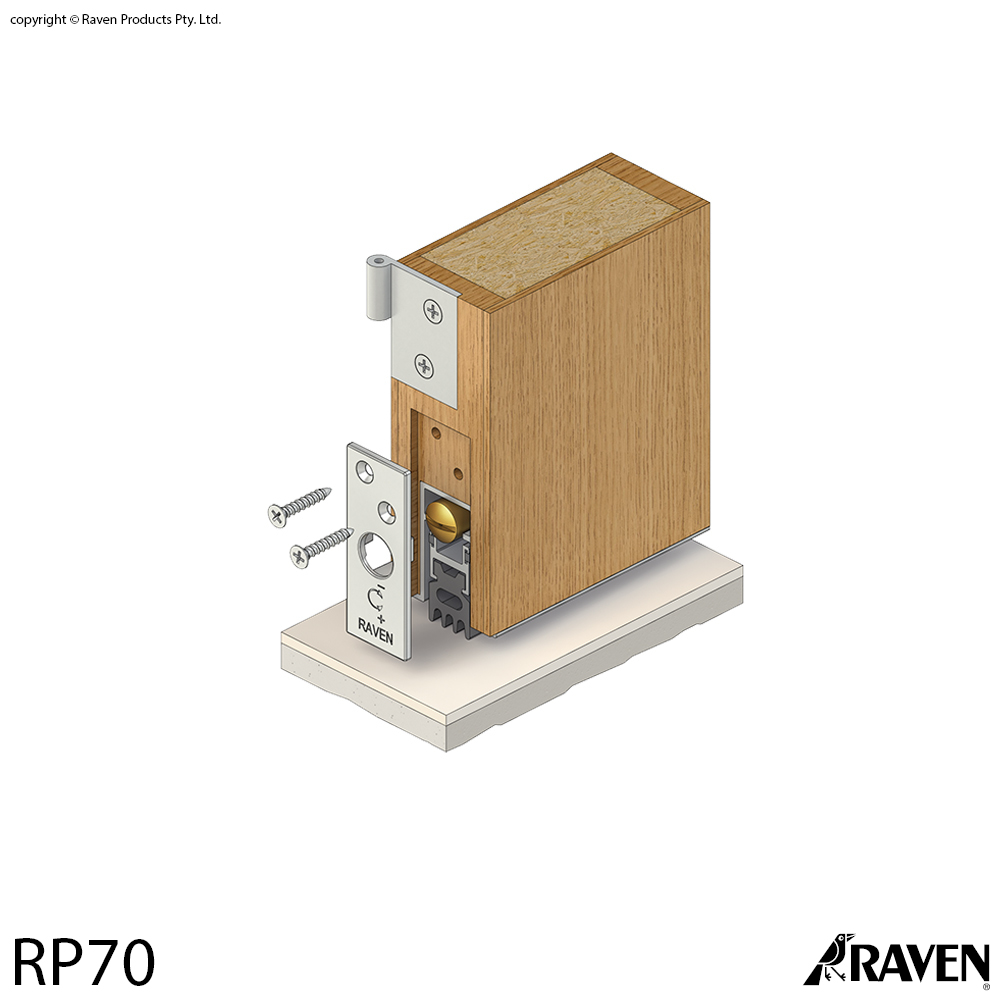

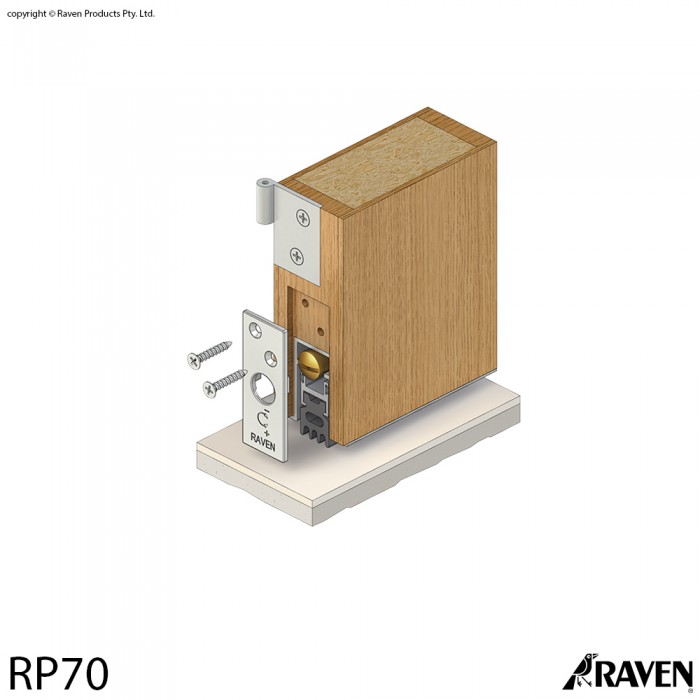

RP70 Door Bottom Seal

  • Gap Size: 3-13mm
  • Location: Door Bottom
$103.30 (inc GST)

For detailed product information, please Click Here to go to the manufacturer's website.

NOTE: This is a commercial product, we recommend installation by a second fix carpenter or joiner.

A heavy duty, fully morticed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, featuring an EPDM foam gasket for acoustic door applications. RP70 is operated automatically by pressure against the door jamb on its adjustable brass strike.

IMPORTANT: Seals can be cut back to the previous available size eg. 920mm cuts back to 610mm. For seal sizes see table below.

Suits Door Types
Double Inward Opening, Double Outward Opening, Single Inward Opening, Single Outward Opening
Tools Required
See detailed fitting instructions supplied with goods
Product Number Barcode Length Colour
A70C18 9310459031458 450mm Anodised (Clear)
A70C36 9310459031472 920mm Anodised (Clear)
A70C42 9310459031489 1067mm Anodised (Clear)
A70C48 9310459031496 1220mm Anodised (Clear)
A70C60 9310459031502 1500mm Anodised (Clear)
A70C24 9310459031465 610mm Anodised (Clear)
