RP99Si Door Bottom Seal

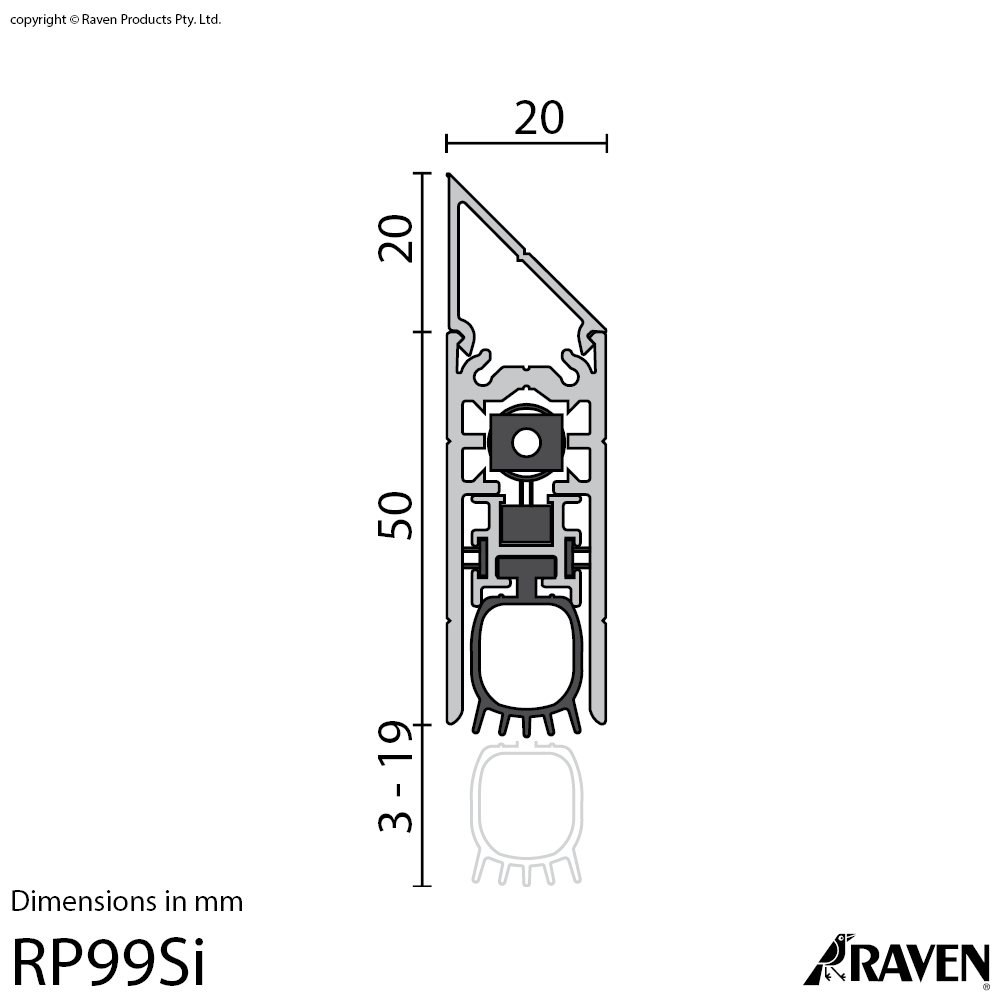

  • Gap Size: 3-19mm
  • Location: Door Bottom
$84.78 (inc GST)

For detailed product information, please Click Here to go to the manufacturer's website.

NOTE: This is a commercial product, we recommend installation by a second fix carpenter or joiner.

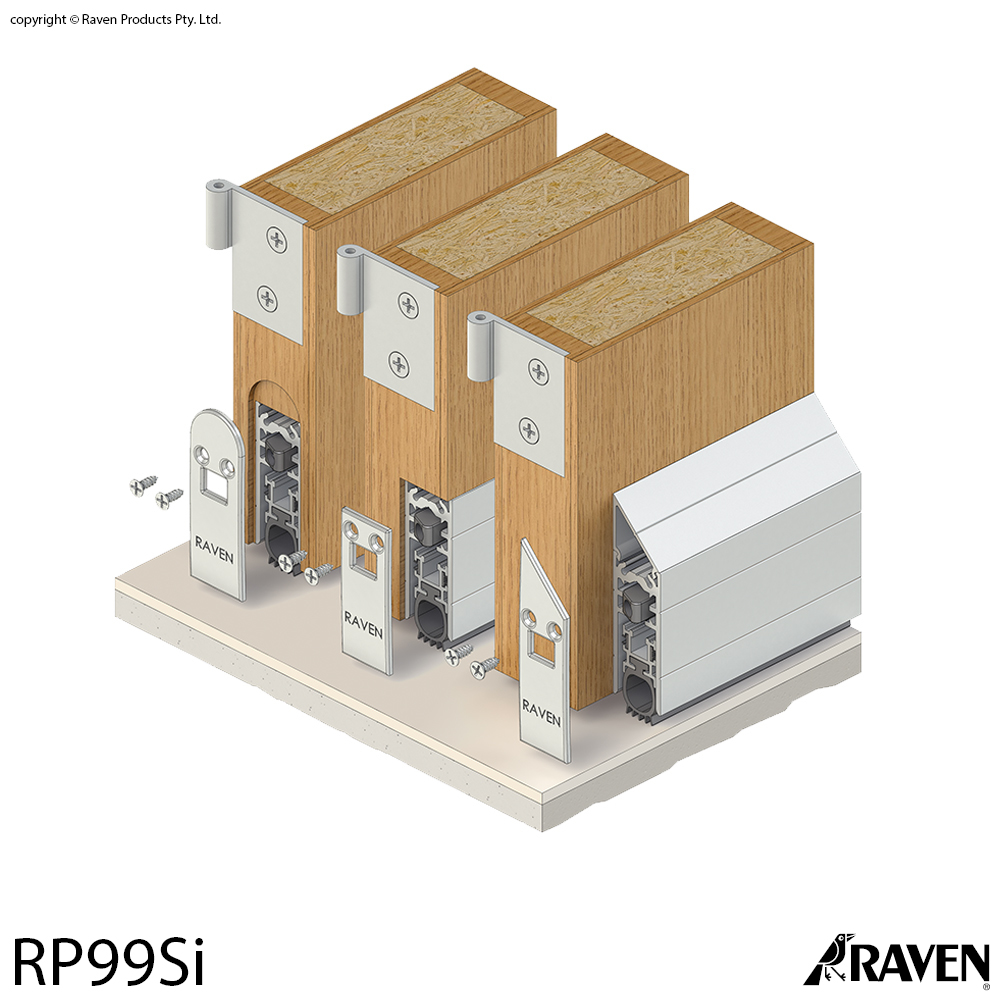

A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, with a silicon gasket for medium temperature smoke applications. Operated automatically by pressure on the door jamb or stop by its adjustable strike. Includes aluminium cover for concealed fixing for face mounted installation.

IMPORTANT: Seals can be cut back to the previous available size eg. 920mm cuts back to 820mm. For seal sizes see table below.

Suits Door Types
Double Inward Opening, Double Outward Opening, Single Inward Opening, Single Outward Opening
Tools Required
See detailed fitting instructions supplied with goods
Product Number Barcode Length Colour
A99SIC28 9310459042515 720mm Anodised (Clear)
A99SIC15 9310459042492 380mm Anodised (Clear)
A99SIC24 9310459042508 600mm Anodised (Clear)
A99SIC32 9310459042522 820mm Anodised (Clear)
A99SIB36 9310459042454 920mm Anodised (Bronze)
A99SIC36 9310459042539 920mm Anodised (Clear)
A99SIB42 9310459042461 1070mm Anodised (Bronze)
A99SIC42 9310459042546 1070mm Anodised (Clear)
A99SIB48 9310459042478 1220mm Anodised (Bronze)
A99SIC48 9310459042553 1220mm Anodised (Clear)
