RP127Si Door Bottom Seal

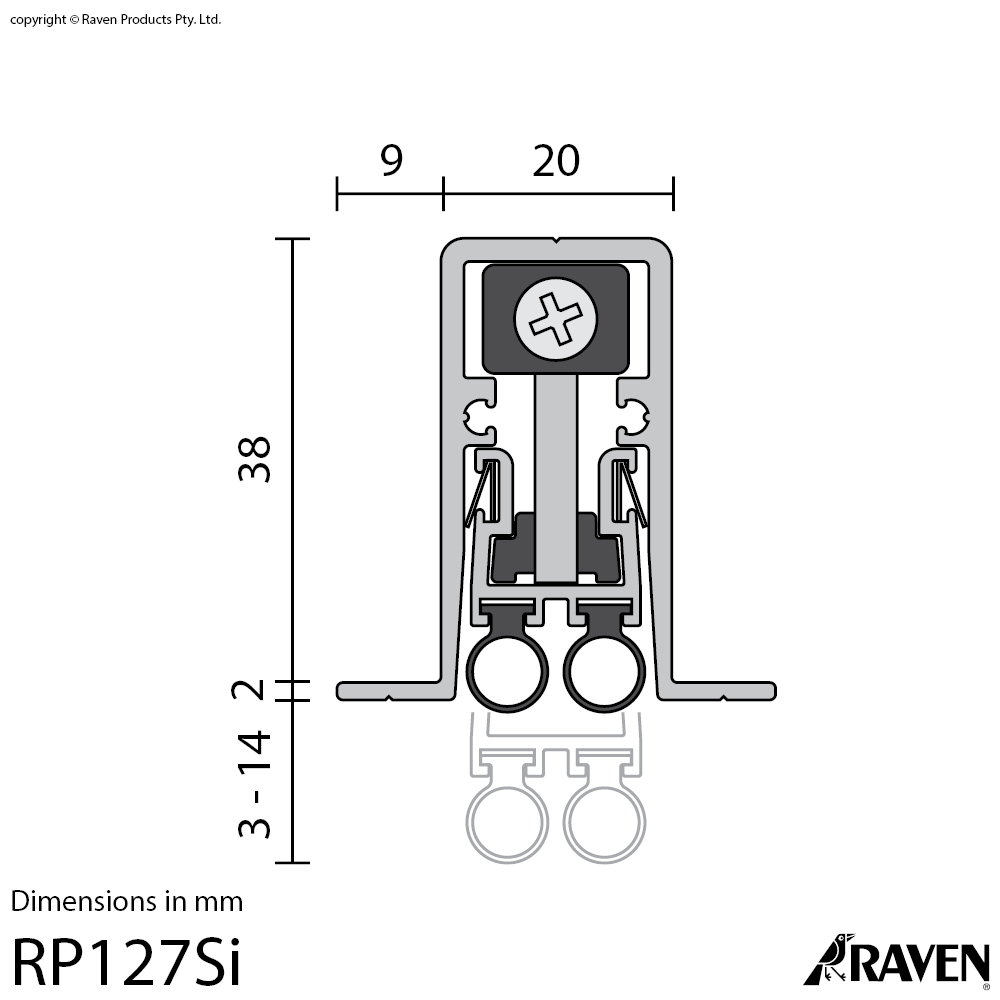

  • Gap Size: 3-14mm
  • Location: Door Bottom
$98.76 (inc GST)

For detailed product information, please Click Here to go to the manufacturer's website.

NOTE: This is a commercial product, we recommend installation by a second fix carpenter or joiner.

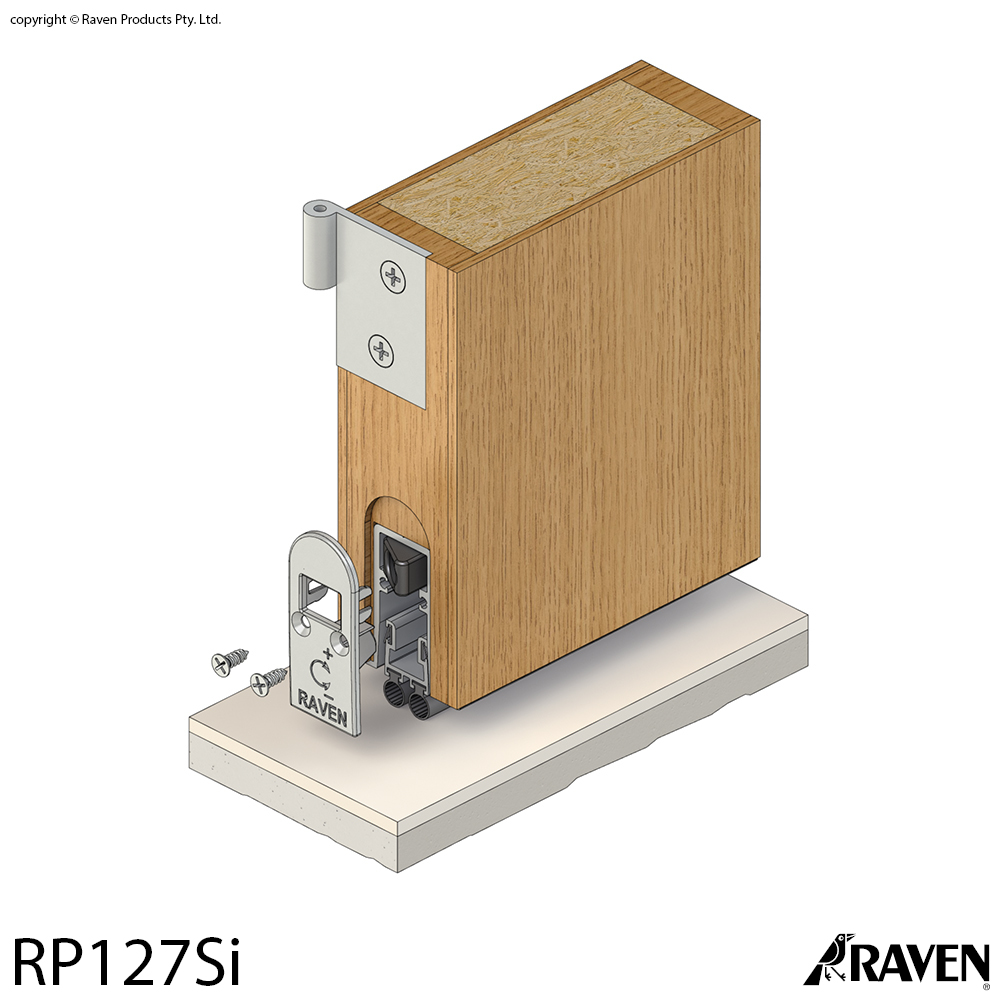

An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications. It is operated automatically by pressure on the door jamb by its adjustable strike.

IMPORTANT: Seals can be cut back to the previous available size eg. 920mm cuts back to 820mm. For seal sizes see table below.

Suits Door Types
Double Inward Opening, Double Outward Opening, Single Outward Opening, Single Inward
Tools Required
See detailed fitting instructions supplied with goods
Product Number Barcode Length Colour
A127SIC0600 9310459225819 600mm Anodised (Clear)
A127SIBK0600 9310459227882 600mm Black
A127SIC0820 9310459225826 820mm Anodised (Clear)
A127SIBK0820 9310459227585 820mm Black
A127SIC0920 9310459225833 920mm Anodised (Clear)
A127SIBK0920 9310459227592 920mm Black
A127SIC1070 9310459225840 1070mm Anodised (Clear)
A127SIBK1070 9310459227608 1070mm Black
A127SIC1220 9310459225857 1220mm Anodised (Clear)
A127SIBK1220 9310459227899 1220mm Black
A127SIC1500 9310459225864 1500mm Anodised (Clear)
