RP4FZ Door Bottom Seal

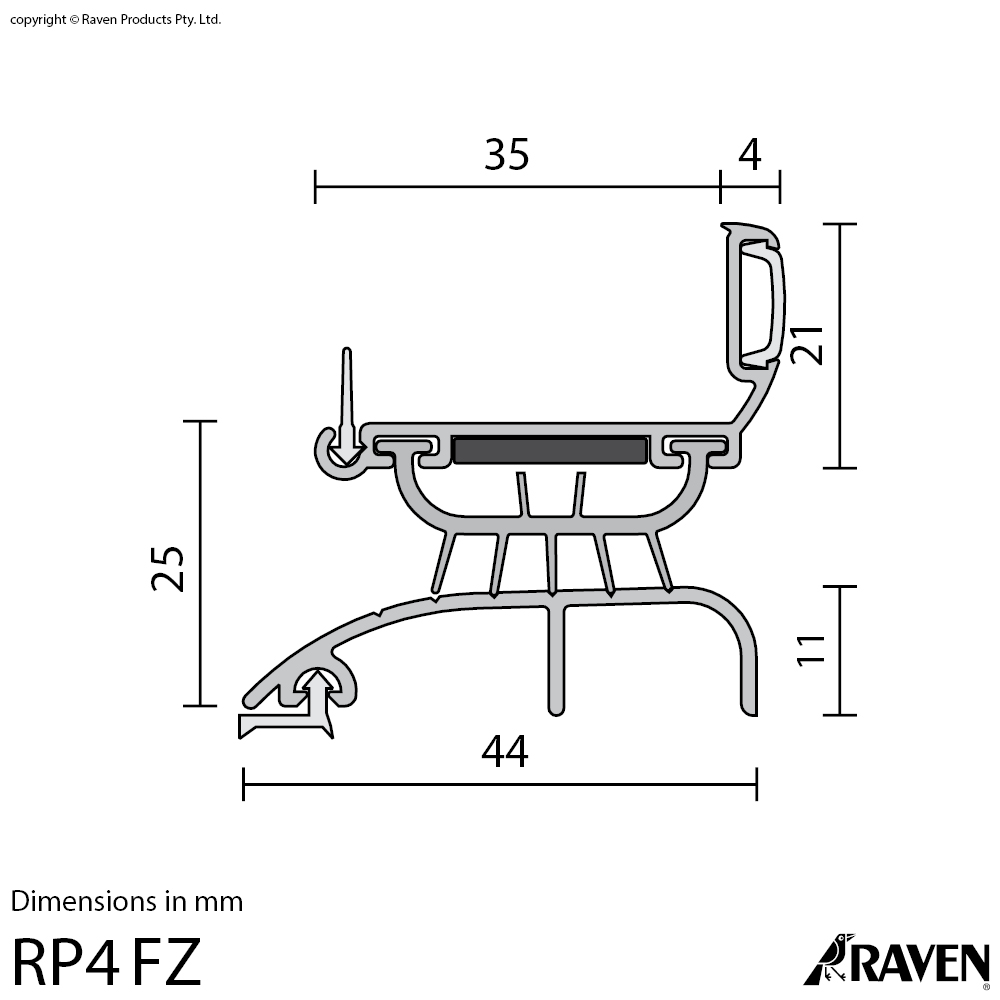

  • Gap Size: 23mm to 25mm
  • Location: Door Bottom
  • Materials: Anodised aluminium, quality sealing gaskets and intumescent strip.
$98.55 (inc GST)

NOTE: This is a commercial product, we recommend installation by a second fix carpenter or joiner.

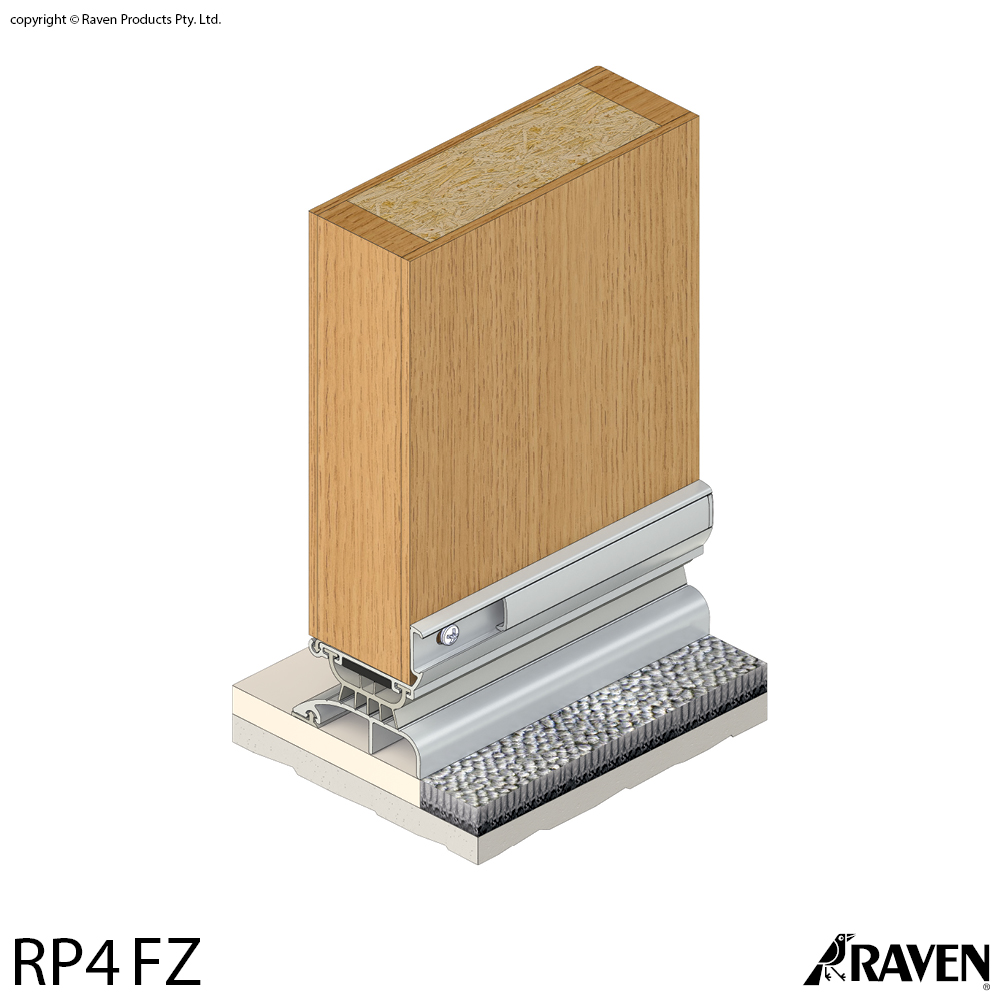

A storm proof door bottom seal and threshold plate that is ideal where maximum weather protection is required. The RP4FZ multi-blade seal defies rain infiltration. Can be fitted to the square cut bottom of a door without removing the door, provided there is an existing gap of 25mm. With an intumescent fire seal providing protection to the bottom of the door in bushfire prone areas up to BAL FZ in accordance with AS3959.

Suits Door Types
Double Outward Opening, Single Inward Opening, Single Outward Opening, Double Inward Opening, Door Bottom Seal
Tools Required
Hacksaw or circular saw, drill, wood chisel & scissors
Product Number Barcode Length Colour
A4FZB1000 9310459228599 1000mm Anodised (Bronze)
A4FZC1000 9310459228612 1000mm Anodised (Clear)
A4FZB1750 9310459228605 1750mm Anodised (Bronze)
A4FZC1750 9310459228629 1750mm Anodised (Clear)
