RP142 Installation Instructions

Universal Replacement Roller-Door Seal is suitable for Gliderol, B&D, Steel-line and Stramit roll-up doors.

The RP142 Universal Replacement Roller-Door Seal is suitable for Gliderol, B&D, Steel-line and Stramit roll-up doors.

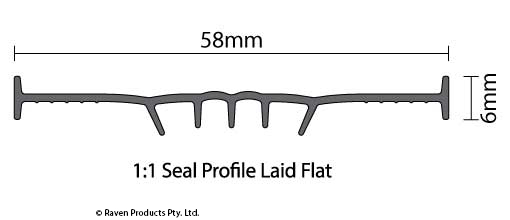

For a close fit, RP142 (6mm T section) must be similar to your existing seal so it can slide in channel and hold firm. The RP142 (58mm width) is a suitable replacement for seals that are between 48-68mm wide.

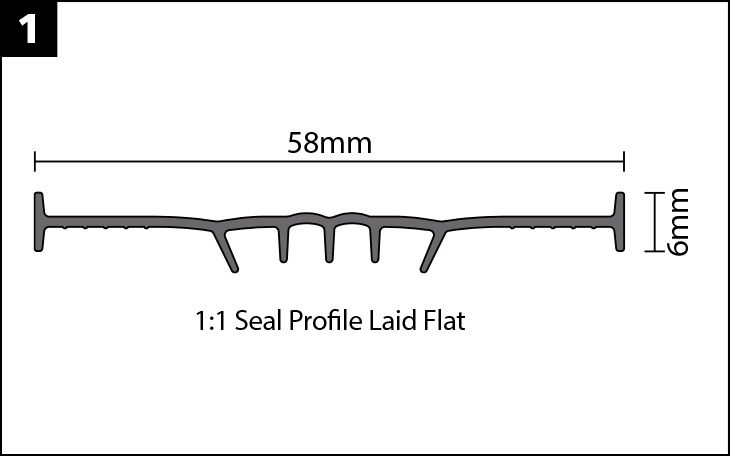

  1. IMPORTANT: Before opening pack, compare your existing roller-door seal to the RP142 universal profile above.
    Step 2 Figure 1

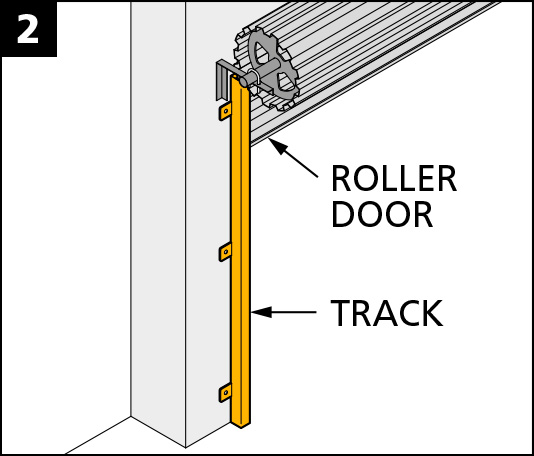

  2. Push the roller-door up. For automatic doors, unplug the electric power to the motor first. Unbolt and remove the track opposite the motor to access old seal.
    Step 2 Figure 1
  3. Temporarily move the fabric webbing out of the way. Pull out the old seal.
    Step 2 Figure 1

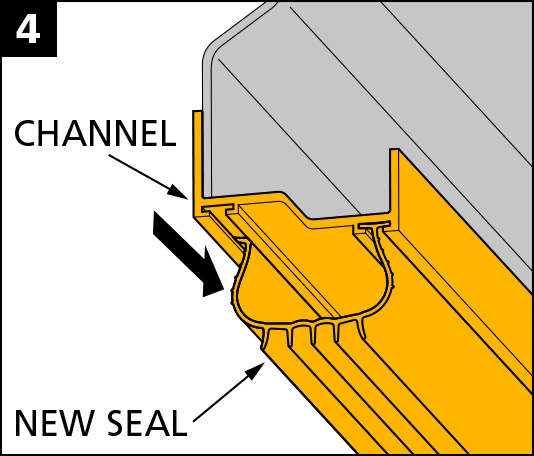

  4. Slide the new seal into the channel and trim to suit. Position the fabric webbing back into place. Bolt the track back into place.
    Step 2 Figure 1
