RP7 Installation Instructions

A rigid and flexible PVC door stop frame seal which can be painted.

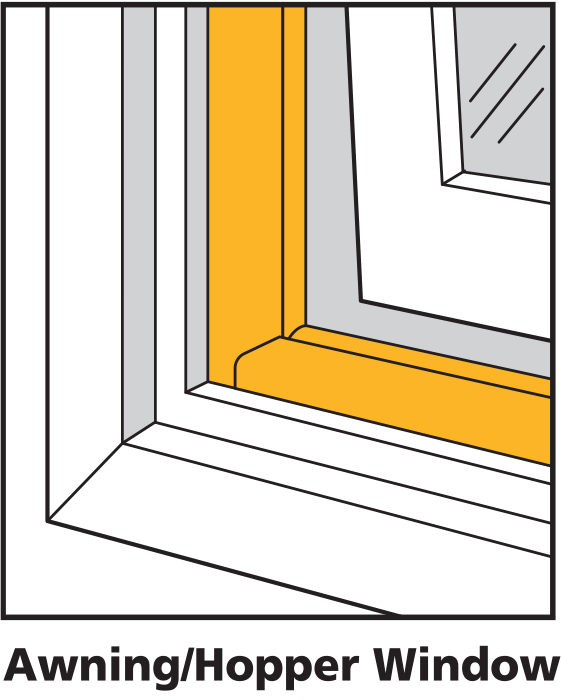

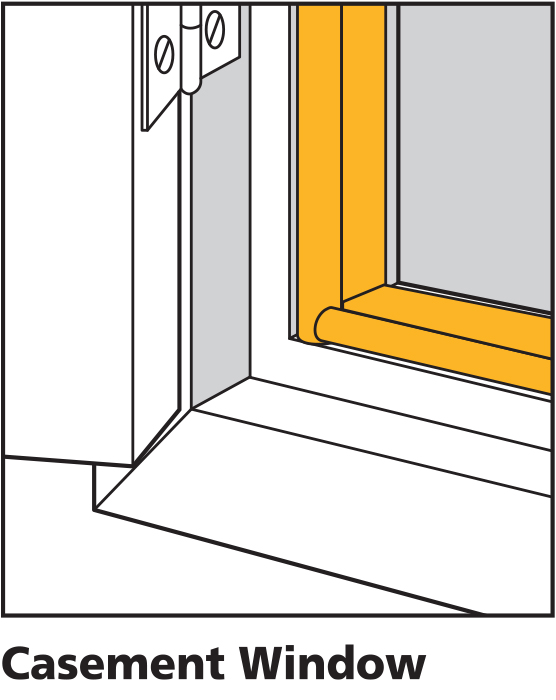

The RP7 Weather & Acoustic Frame Seal is suitable for both windows and single or double doors.

  1. Read all instructions then square or mitre cut the RP7 seal to the required length.

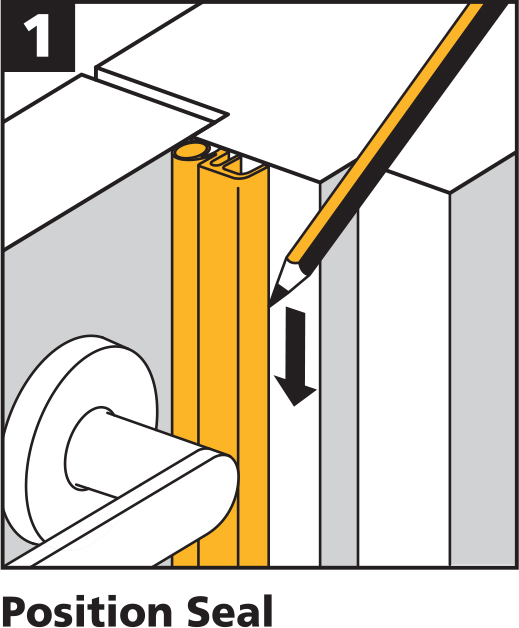

  2. Close the door or window. Position the seal to make light, even contact around the frame. A tight seal is not necessary. Pencil mark the seal location (STEP 1).

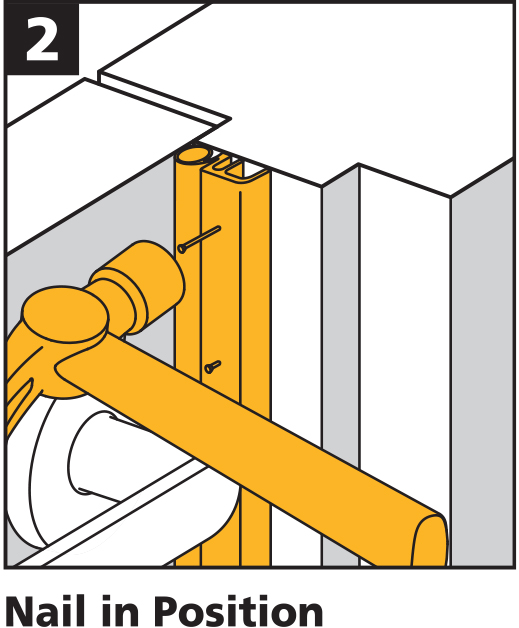

  3. Lightly tack seal in position and inspect opening and closing for poper latching. When satisfied, fully nail in to position (STEP 2).
  4. Paint rigid portion if desired.

Note: If installing to a newly painted surface, ensure the paint or varnish is hard and is fully cured. ( 5 - 6 weeks).
