RP48 Installation Instructions

A superior quality EPDM rubber, self adhesive weather seal for Doors & Windows. Quick and easy to install, the RP48 is a DIY product that works well in eliminating draughts, rattles and cushioning applications.

The RP48 Door & Window Weather Strip is suitable for all types of doors and windows.

  1. All surfaces must be clean, smooth and if painted, well cured.

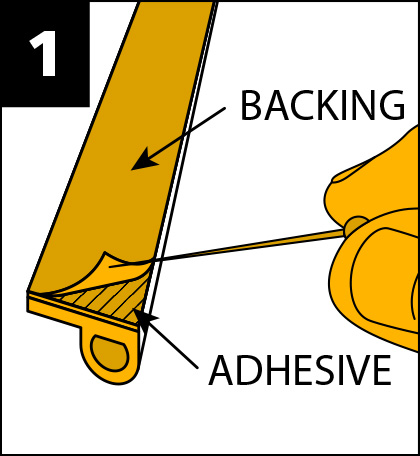

  2. Separate twin rubber weather strip to form a single strip.
    Step 2 Figure 1

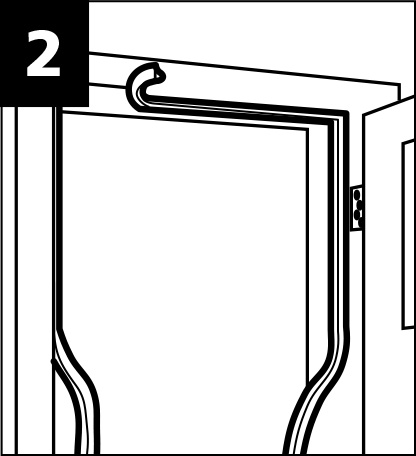

  3. Progressively remove backing paper and apply single weather strip as illustrated.

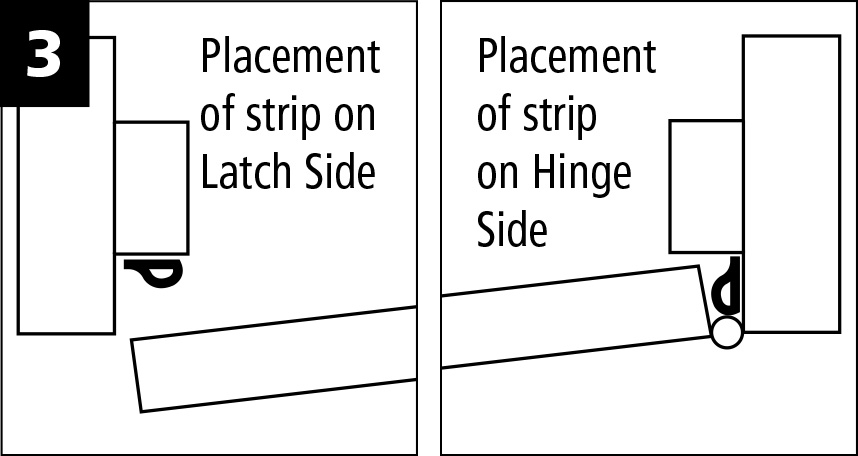

NOTE: Position of weather strip on door stops. Note that the placement on the hinged side is different to the latch side.
Figure 2
