RP143 Installation Instructions

Replacement Roller-Door Seal is suitable for B&D roll-up doors made before 1997.

RP143 Replacement Roller-Door seal for B&D doors made before 1997.

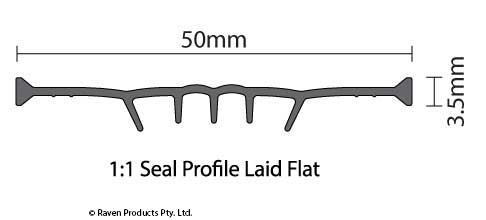

For a close fit, RP143 should be similar to your existing seal so it can slide in channel and hold firm.

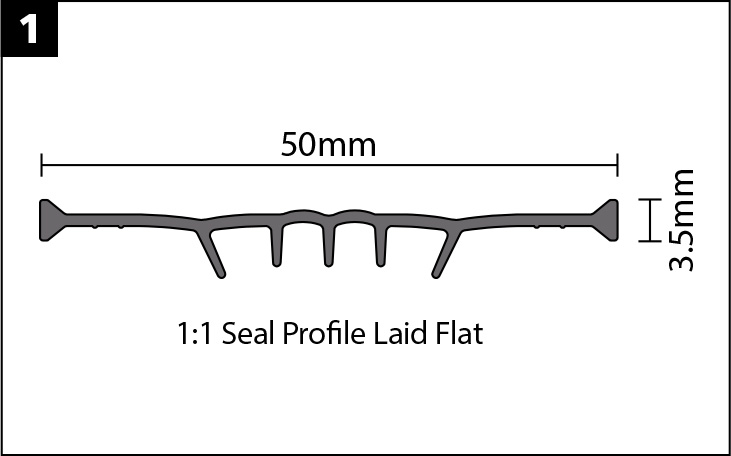

  1. IMPORTANT: Before opening pack, compare your existing B&D roller-door seal to the RP143 profile.
    Step 2 Figure 1

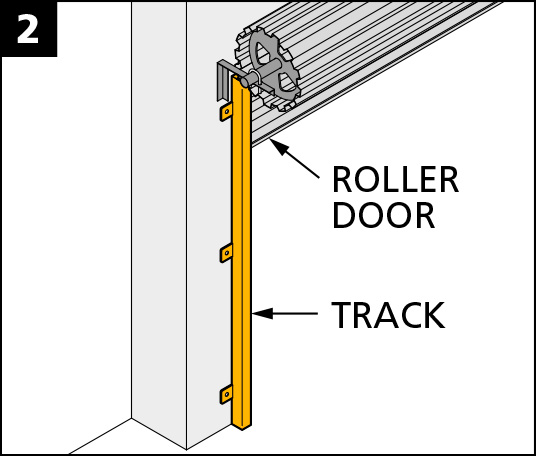

  2. Push the roller-door up. For automatic doors, unplug the electric power to the motor first. Unbolt and remove the track opposite the motor to access old seal.
    Step 2 Figure 1

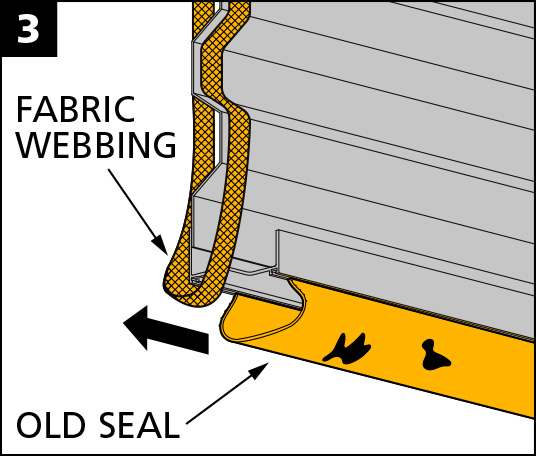

  3. Temporarily move the fabric webbing out of the way. Pull out the old seal.
    Step 2 Figure 1

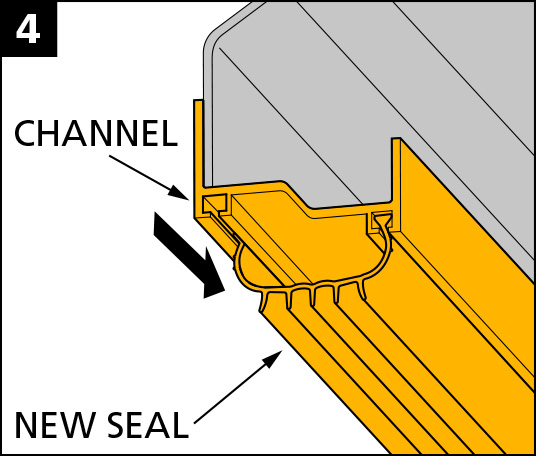

  4. Slide the new seal into the channel and trim to suit. Position the fabric webbing back into place. Bolt the track back into place.
    Step 2 Figure 1
