RP17B Installation Instructions

A co-extruded PVC sweep seal that fits to the dor bottom of doors. These extremely flexible seals can be quick and easily installed without removing the door. Ideal for Sliding and security screen doors.

The RP17B Door Bottom Sweep Seal is suitable for all types of doors including double doors, sliding and bi-fold.

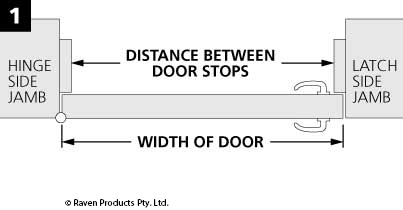

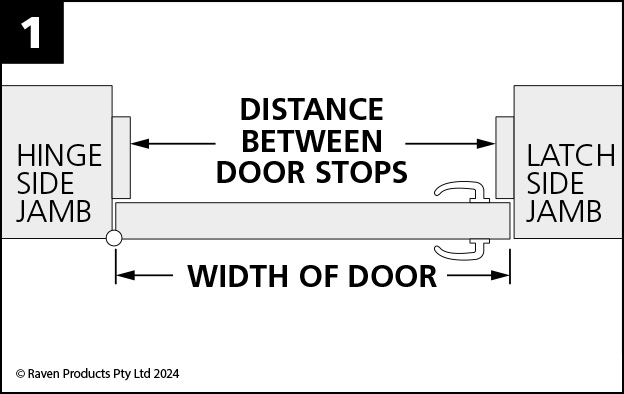

  1. RP17 can be fitted to the inside or outside of the door.* Refer to Fig. 1.
    Step 1 Figure 1

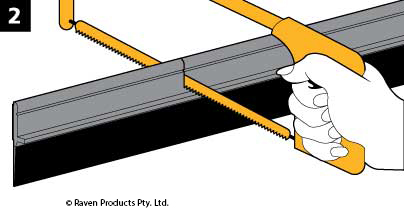

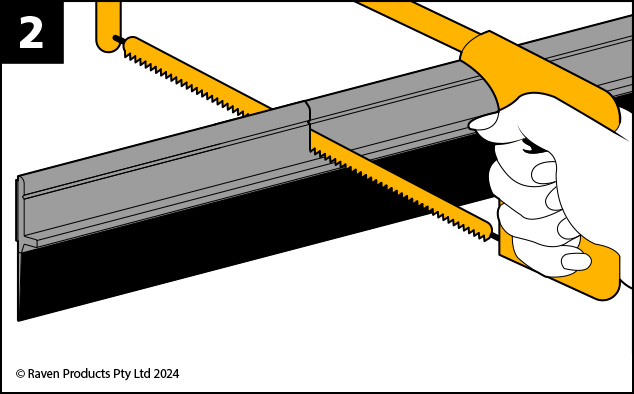

  2. Cut the seal to the required length with a fine toothed hacksaw. Refer to Fig. 2.
    Step 2 Figure 2

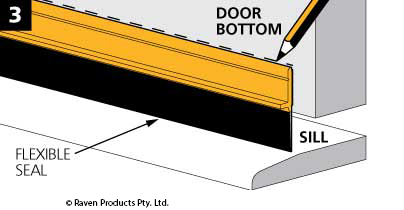

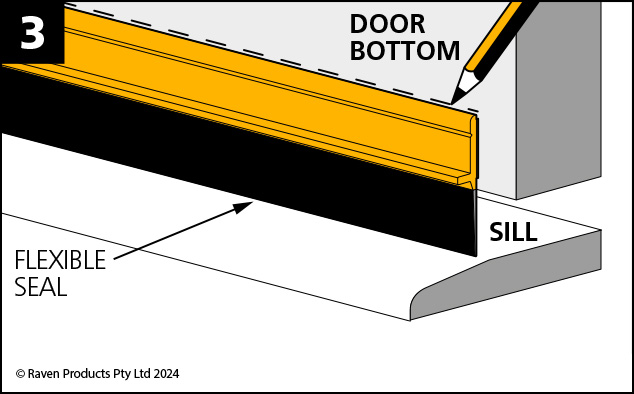

  3. Before removing the backing paper to expose adhesive, position the seal against the door bottom and mark the fixing position.

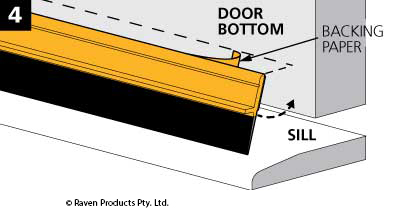

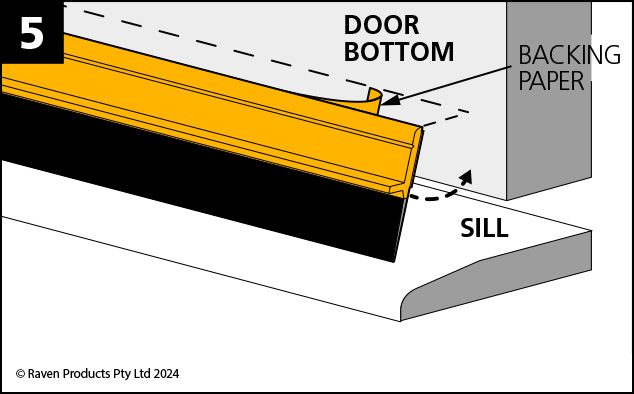

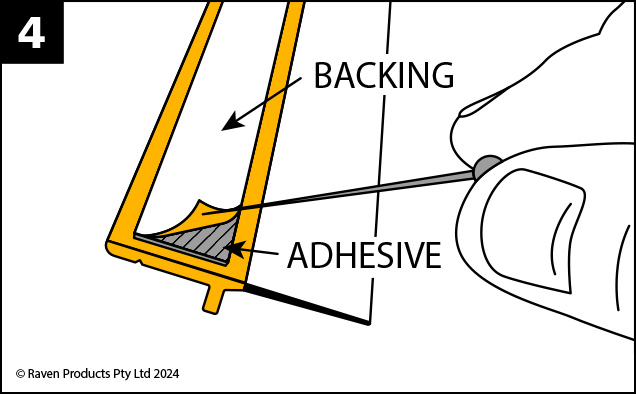

  4. The fixing surface must be smooth, clean and if painted, well cured. Peel off the backing paper to expose adhesive. Position the RP17 on marked fixing position and press firmly. Refer to Fig. 3.
    Step 4 Figure 3

NOTE: For easy door operation, determine which side of the door the RP17 will function best. Flexible seal should lightly engage the sealing surface and sweep smoothly across the floor. Uneven or ramped floors may cause the seal to drag. Recommended adhesion temperature is above 21 degrees celcius. Full adhesion strength may take a few days.
