RP83 Installation Instructions

A nylon brush seal with a PVC carrier, sweeps smoothly over hard floors.

The RP83 door bottom brush strip seal is suitable for all types of doors, including double, sliding, bi-fold and security doors.

NOTE: For easy door operation, determine which side of the door RP83 will function best. Brush seal should lightly engage the sealing surface and sweep smoothly across the floor. Uneven or ramped floors may cause the seal to drag. Recommended adhesion temperature is above 21 degrees celcius. Full adhesion strength may take a few days.

  1. Seal can be fitted on the front or back of door.

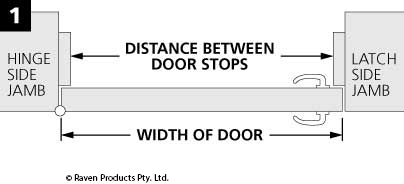

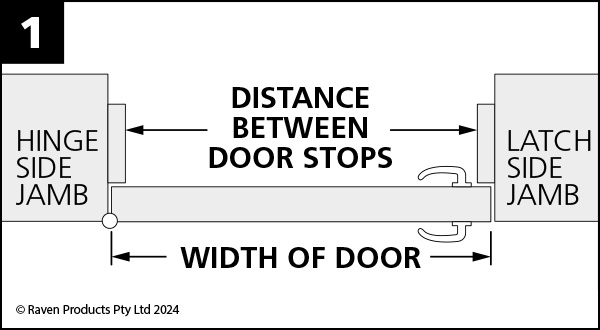

  2. With door closed, measure door width. Refer to Fig. A.

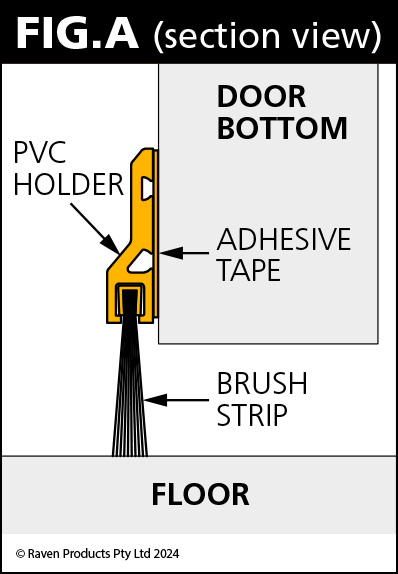

    Step 2 Figure A
  3. Remove brush strip from PVC holder.

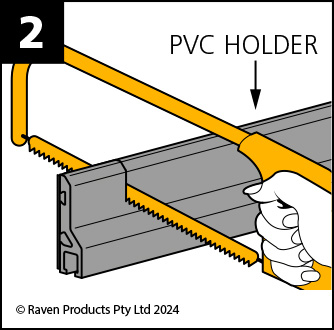

  4. Cut PVC holder with hacksaw to length, less 3mm to allow for end escuthcheon plates.

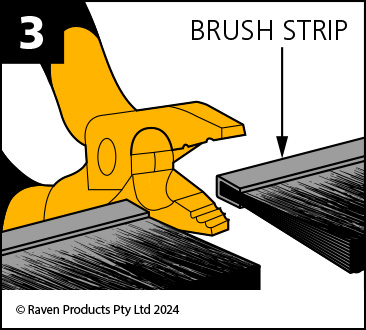

  5. Cut brush strip to length of PVC holder with side shears to lock in bristles. Refer to Fig. 1.
    Step 5 Figure 1

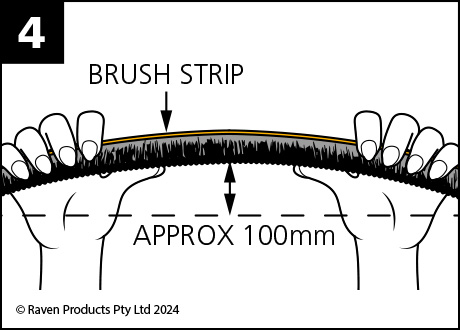

  6. Replace brush strip in PVC holder. If the brush is loose in the holder, remove and bend the brush and replace. Refer to Fig. 2.
    Step 6 Figure 2

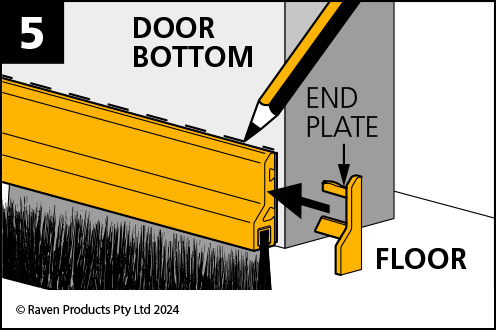

  7. Fit escutcheon end plates to each end of the PVC holder. Refer to Fig. 3.
    Step 7 Figure 3
  8. Place seal against door and mark position for fixing. Bristles should lightly brush the floor surface.

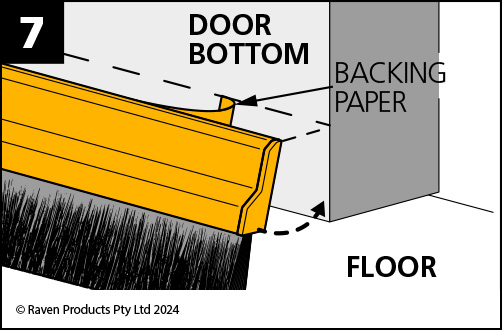

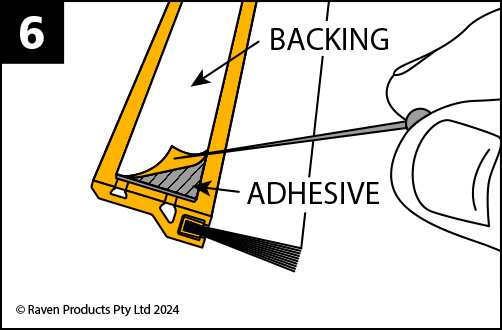

  9. Remove adhesive backing paper and lightly position the seal. Refer to Fig. 3. When satisfied, firmly press seal to surface.
    Step 9 Figure 3
