RP3 Installation Instructions

Automatically lifts to clear carpet, seals tight when door closes.

The RP3 door bottom seal is suitable for all types of doors.

Note:m Seal must be fitted to the front face of inward opening doors.

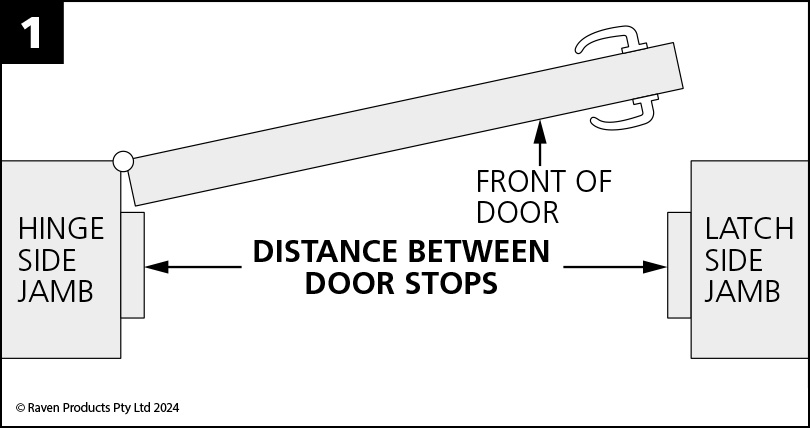

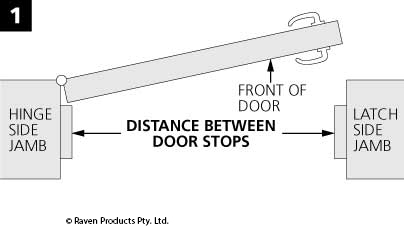

  1. With door closed, measure front of door between door stops. Cut seal with a hacksaw to measurement less 3mm for clearance on latch side.
    Note: If door is less than 650mm wide, trim equal amounts from each end to avoid mechanism damage. 385mm is the minimum operable size.

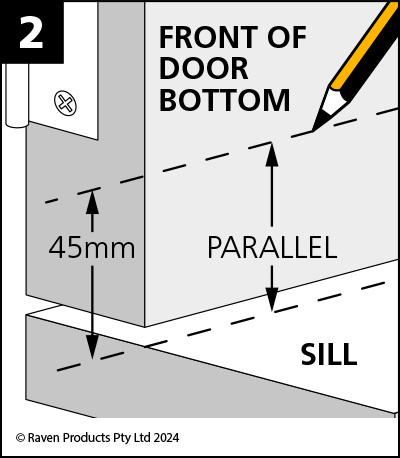

  2. With door closed, mark line on front of door bottom, parallel to and 45mm up from door sill.

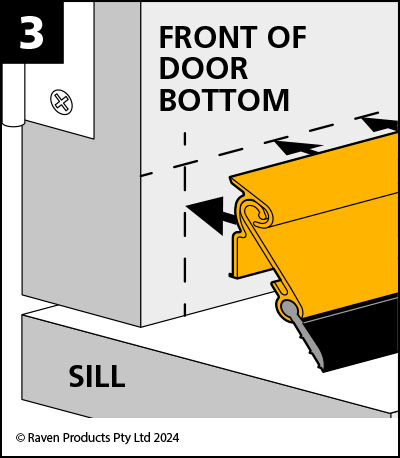

  3. Position top edge of seal on marked line and firm against hinge side stop.

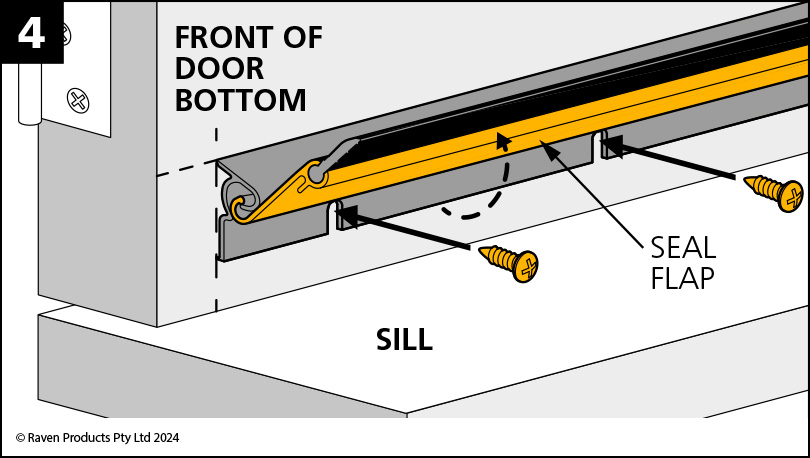

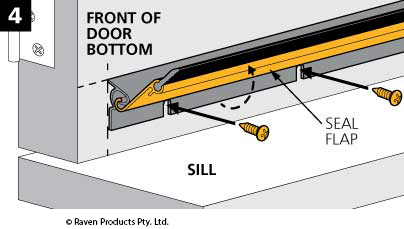

  4. Lift seal flap and mark positions for screws at the top of the fixing slots.
    Remove RP3 and in the marked screw positions, fix the four short screws in half way. Reposition RP3 on screws and fully tighten.

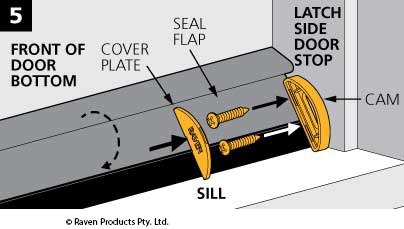

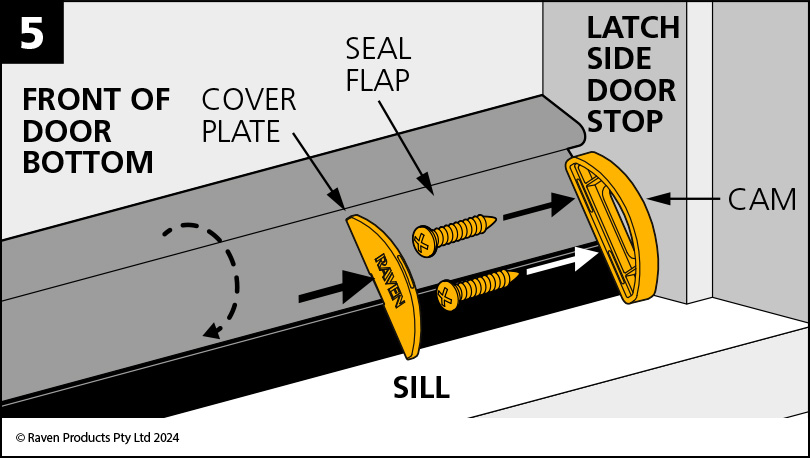

  5. With door closed, position cam to the latch side door stop so it lightly closes seal flap (FIG.A).
    With long screw, fix cam in top of slot. Adjust as necessary then fix in bottom slot with 2nd screw.
    Check sealing action then snap in cover plate.
