Push In LG Fitting Instructions

For frequently asked questions such as "How to find your model number" or "How to measure your door seal", visit our FAQ's page.

These instructions suit seal profiles such as FD004, FD010, FC504, FC505, FC506, FC508, FC509 andFC510.

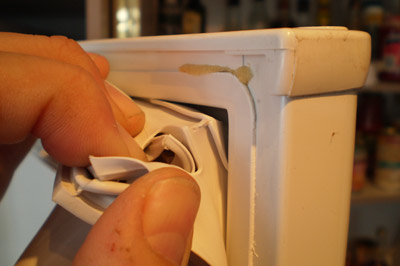

  1. Begin peeling out seal from the corner. Because the seal is a push in type of seal. It should remove quite easily.

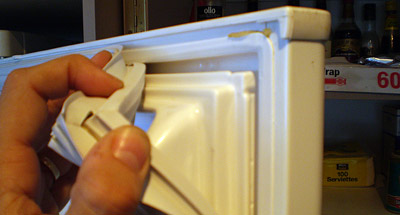

  2. Pull the entire seal out. It comes out very easily. Once the old seal is removed you may wish to clean the fridge before installing the new seal.

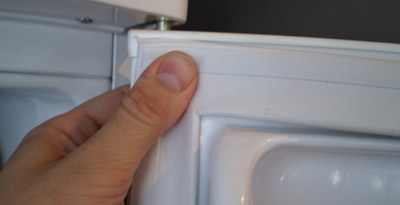

  3. Push the new one in. If there are any gaps, use a hair dryer to heat the seal up.
